Metravi PRO ERT-1635 Double Clamp Earth Resistance Tester
Click To Zoom
Metravi PRO ERT-1635 Double Clamp Earth Resistance Tester
Metravi PRO ERT-1635 Double Clamp Earth Resistance Tester

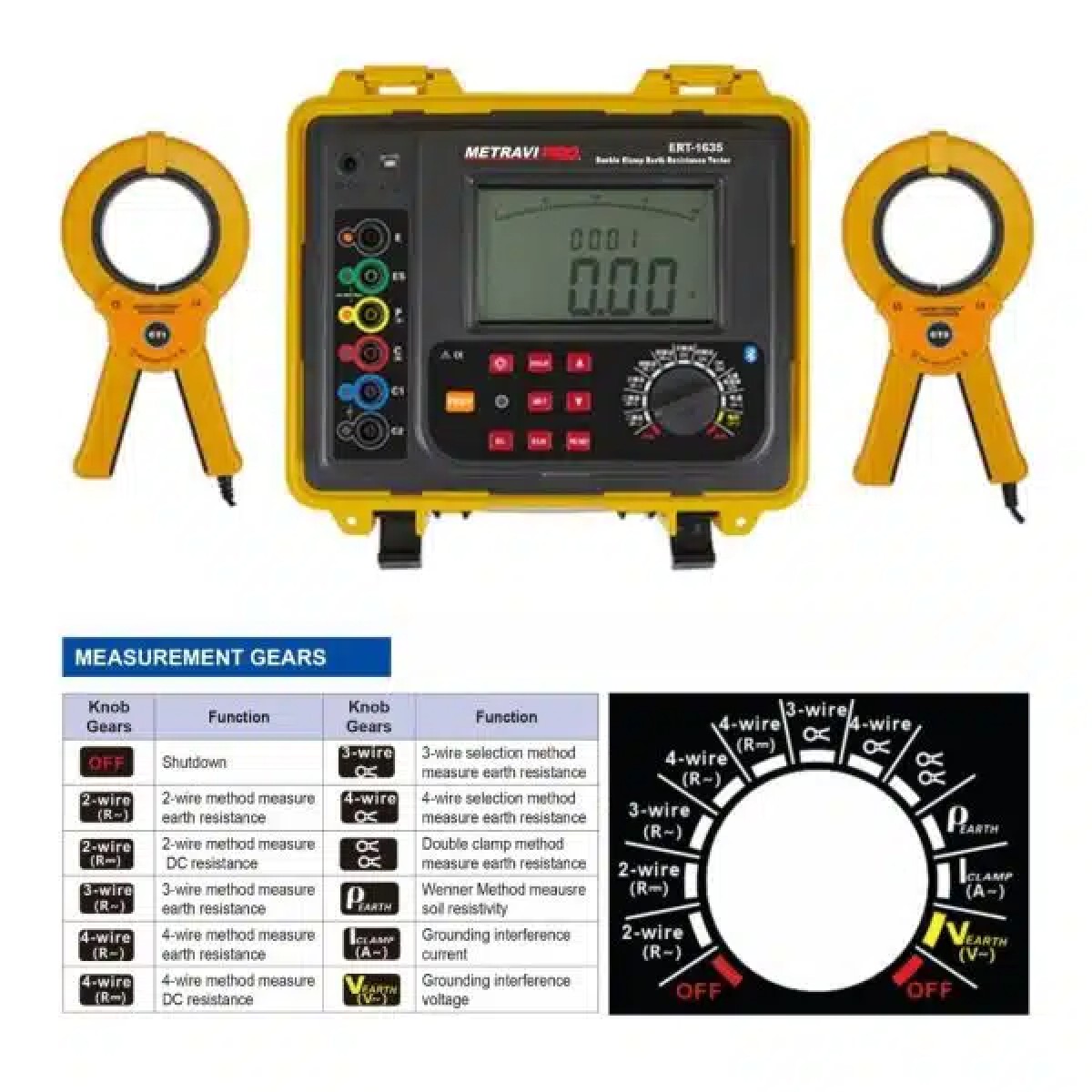

he Metravi ERT-1635 Double Clamp Multi-function Earth and Grounding Resistance Tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage, grounding line leakage current, AC current and DC resistance. Applying digital processing technology, it offers precision 4-wire method, 3-wire method and simple 2-wire method, selection method, double-clamp method to measure grounding resistance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
100% BUYER Protection
₹ 1,14,750.00
(GST inclusive price) i₹1,14,750.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |||
| Power Supply | DC7.4V 2600mAh rechargeable lithium battery | ||
| 2/3/4-wire Method Measure Earth Resistance | Range : 0.00Ω ~ 30KΩ | Resolution : 0.01Ω | Accuracy : ±2%rdg±3dgt |
| Selection Method Measure Earth Resistance | Range : 0.00Ω ~ 3000Ω | Resolution : 0.01Ω | Accuracy : ±2%rdg±3dgt |
| Double Clamp Method Measure Earth Resistance | Range : 0.00Ω ~ 100Ω | Resolution : 0.01Ω | Accuracy : ±10%rdg±5dgt |
| Earth Voltage Measurement | Range : 0.0 ~ 100.0V AC | Resolution : 0.1V | Accuracy : ±2%rdg±3dgt |
| Earth Current Measurement | Range : 0.0mA ~ 600.0A | Resolution : 0.0mA | Accuracy : ±2%rdg±3dgt |
| Soil Resistivity Measurement (ρ) | Range : 0.00Ωm ~ 9000KΩm | Resolution : 0.01Ωm | |
| CT Size | φ70mm | ||
| Short-circuit Test Current | AC 250mA max | ||
| Open-circuit Test Current | AC 40V max | ||
| Test Frequency | 128Hz / 111Hz / 105Hz / 94Hz (AFC) | ||
| Data Storage | 2000 groups | ||
| Automatic Shutdown | 15 Minutes after power on, will automatic shut down without any operation | ||
| LCD Dimension | LCD Frame Dimension : 128mm×75mm; LCD Display Dimension : 124mm×67mm | ||
| Tester Dimension | 280mm (L) × 260mm (W) × 160mm (H) | ||
| Total Weight | 6700g (include package) | ||
| Working Current | Standby: around 25mA (Backlight close); Measurement : 100mA (Backlight close) | ||
| Test Wires | Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6 pcs wires) | ||
| Auxiliary Ground Rod | 4pcs : φ10mm × 150mm | ||
| USB Interface | With USB interface, software monitoring, storage data can be uploaded to computer, saved and printed. | ||
| Bluetooth Communication | Support the Bluetooth communication function of the Android system, after installation the APP, mobile terminals can be used to test operations and view test records. | ||
| Alarm Function | Measure value exceed alarm setting value, will “Toot-toot-toot” alarm indication | ||
| Battery Voltage | While battery voltage decreases to around DC 7.2V±0.1V, will display low battery voltage symbol “+ , - ”, and remind to replace the battery. | ||
