Metravi CET-05B Clamp-on Earth and Ground Resistance Tester with Bluetooth

Click To Zoom

Metravi CET-05B Clamp-on Earth and Ground Resistance Tester with Bluetooth

Metravi CET-05B Clamp-on Earth and Ground Resistance Tester with Bluetooth

(Based On 10 Reviews)

The Metravi CET series Clamp-on Earth Resistance Testers are widely used in earth resistance measurement and loop resistance measurement in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.

Request Callback

Order In Bulk

Generate Quote

₹ 27,000.00

(GST inclusive price) i
  • Base Value: ₹ 22881.4
  • GST: (18) % ₹ 4118.6
  • Total Value ₹ 27000

₹27,000.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Avoids long self-test waiting after power-on, and enters the test interface immediately after power-on.
  • No relay self-test and adopts advanced algorithms and digital integrated processing technology.
  • No bulky problem of old products and is portable & handheld.
  • New housing & design, six operation keys on the panel, easy to operate.
  • Added sound and light alarm function, will have ""beep--beep-- beep--"" alarm sound.
  • Added interference signal identification and indication function, will have ""beep--beep--beep--"" prompt sound.
  • Measurement range 0.01Ω-1500Ω.
  • Stores 99 groups of data, has lower power consumption, maximum startup and operating current less than 50mA.

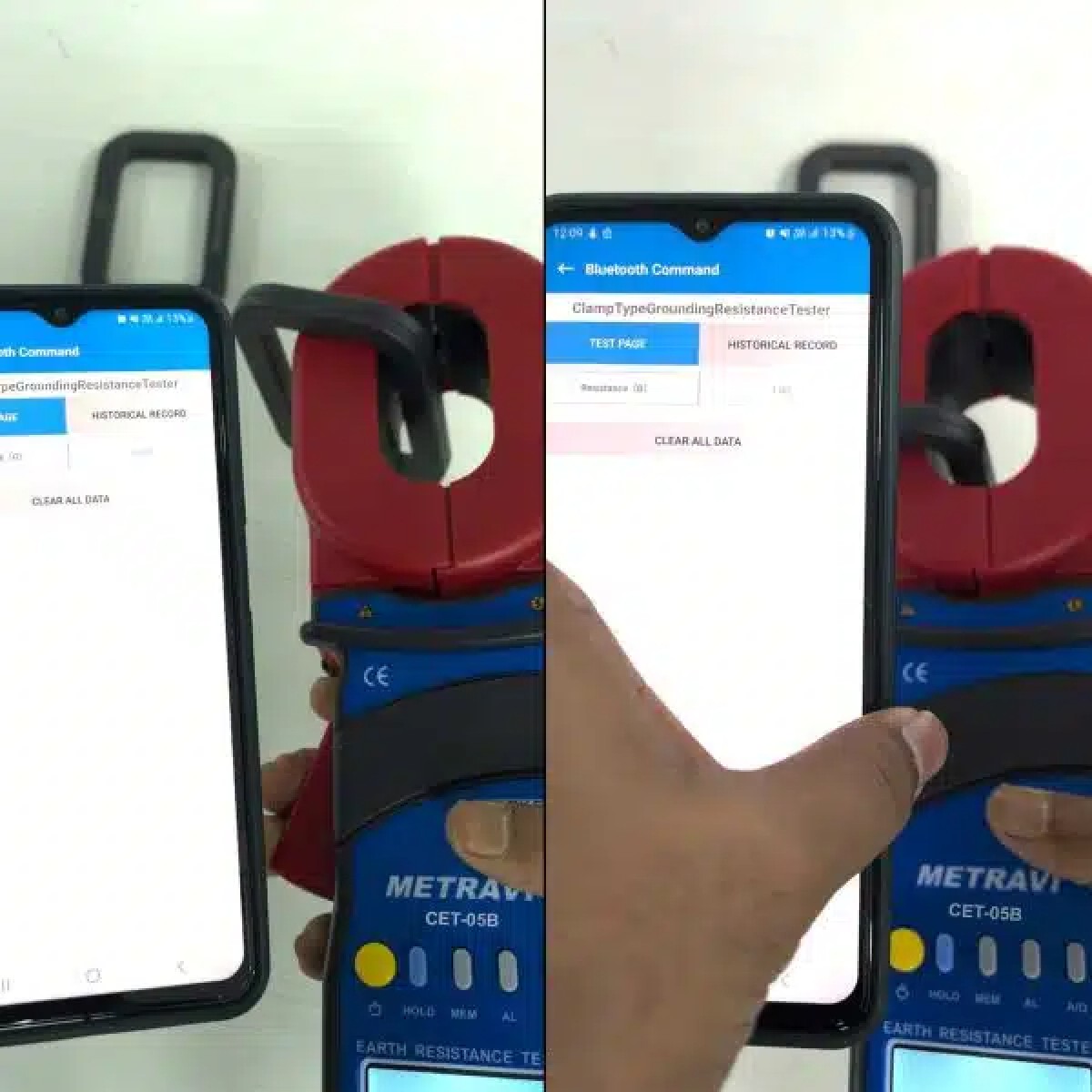

  • Bluetooth enabled and Free App for data storage and analysis.



What's in the box?

  • Clamp-on Earth and Ground Resistance Tester with Bluetooth

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

General Specification
Clamp Size65mm×32mm
Tester Size295mm×98mm×66mm
Weight2.5kg
Resistance Range0.010Ω-1500Ω
Resistance Resolution0.001Ω
Resistance Test Accuracy± (1%rdg + 0.01Ω)
Current Range0.000mA-40.0A
Current Resolution1uA
Current Test Accuracy1uA
Power Supply± (1.5%rdg + 0.5mA)
Single Measurement TimeRechargeable lithium battery DC3.7V 2600mAh
Display0.5 second
Data Storage4-digit LCD digital display, screen:47mm×28.5mm
Alarm999 Groups
Alarm Threshold Setting RangeBeeping audible alarm
ShiftResistance : 1-199Ω; Current : 1-499mA
External Magnet / Electric FieldAutomatically
Resistance Test Frequency<40A/m; <1V/m
Interface>1KHz



ModelJaw specificationRange of measurementRange of CurrentStorageBluetoothAlarm
CET-05B65mm×32mm0.01Ω - 200Ω----99 Units√√



Earth / Ground Resistance
Range Resolution Accuracy
0.010Ω - 0.099Ω0.001Ω±(1%+0.01Ω)
0.10Ω - 0.99Ω0.01Ω±(1%+0.01Ω)
1.0Ω-49.9Ω0.1Ω ±(1%+0.1Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%+0.5Ω)
100Ω-199Ω1Ω±(2%+1Ω)
200Ω-395Ω5Ω±(5%+5Ω)
400-590Ω 10Ω ±(10%+10Ω)
600Ω-880Ω20Ω±(20%+20Ω)
900Ω-1500Ω30Ω±(25%+30Ω)



Earth / Ground Resistance
Range Resolution Accuracy
0.010Ω - 0.099Ω0.001Ω±(1%+0.01Ω)
0.10Ω - 0.99Ω0.01Ω±(1%+0.01Ω)
1.0Ω-49.9Ω0.1Ω ±(1%+0.1Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%+0.5Ω)
100Ω-199Ω1Ω±(2%+1Ω)
200Ω-395Ω5Ω±(5%+5Ω)
