Metravi DDS-70 DDS Function Generator
Click To Zoom
Metravi DDS-70 DDS Function Generator
Metravi DDS-70 DDS Function Generator
The Metravi DDS-70 Function Generators are compact yet high-performing, arbitrary waveform generators with built-in support for Lab View.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 26,078.00
(GST inclusive price) i₹35,100.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Model | DDS-70 |
| Channel | 2 |
| Frequency Output | 70MHz |
| Sample Rate | 500MSa/s |
| Vertical Resolution | 14 bits |
| Waveform | |
| Standard Waveform | sine, square, pulse, ramp, noise |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others total 150 built-in waveforms |
| Frequency | |
| Sine | 1μHz-70MHz |
| Square | 1μHz ~ 20MHz |
| Pulse | 2mHz ~ 20MHz |
| Ramp | 2mHz ~ 2MHz |
| Noise | 20MHz (-3dB，typical) |
| Arbitrary Waveform | 2mHz ~ 10MHz |
| Frequency resolution | 1μHz or 7 significant figures |
| Frequency stability | ±30 ppm at 0±40℃ |
| Frequency aging rate | ±30 ppm per year |
| Arbitrary | |
| Waveform Length | 2 points – 8K points |
| Sample Rate | 300Ma/s |
| Amplitude | |
| into 50Ω load | 1mVpp ~ 10Vpp（≤ 10MHz） 1mVpp ~ 5Vpp （≤70MHz） |
| DC Offset Range （AD+DC） | ±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
| DC offset resolution | 1mV or 4digits |
| Load Impedance | 50Ω (typical) |
| DC Offset Accuracy | ±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%) |
| Modulation | |
| Type | AM、FM、PM、FSK |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Model | DDS-70 |
| Sweep characteristic | |
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave(Except DC) |
| Minimum/maximum starting frequency | 2mHz（minimum）/ maximum frequency of corresponding carrier |
| Minimum/maximum termination frequency | 2mHz（minimum）/ maximum frequency of corresponding carrier |
| Trigger source | Internal, external |
| Burst characteristic | |
| Waveform | Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC) |
| Types | N-Cycle |
| Trigger source | Internal, manual |
| Carrier frequency | 2 mHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2 |
| Input / Output | |

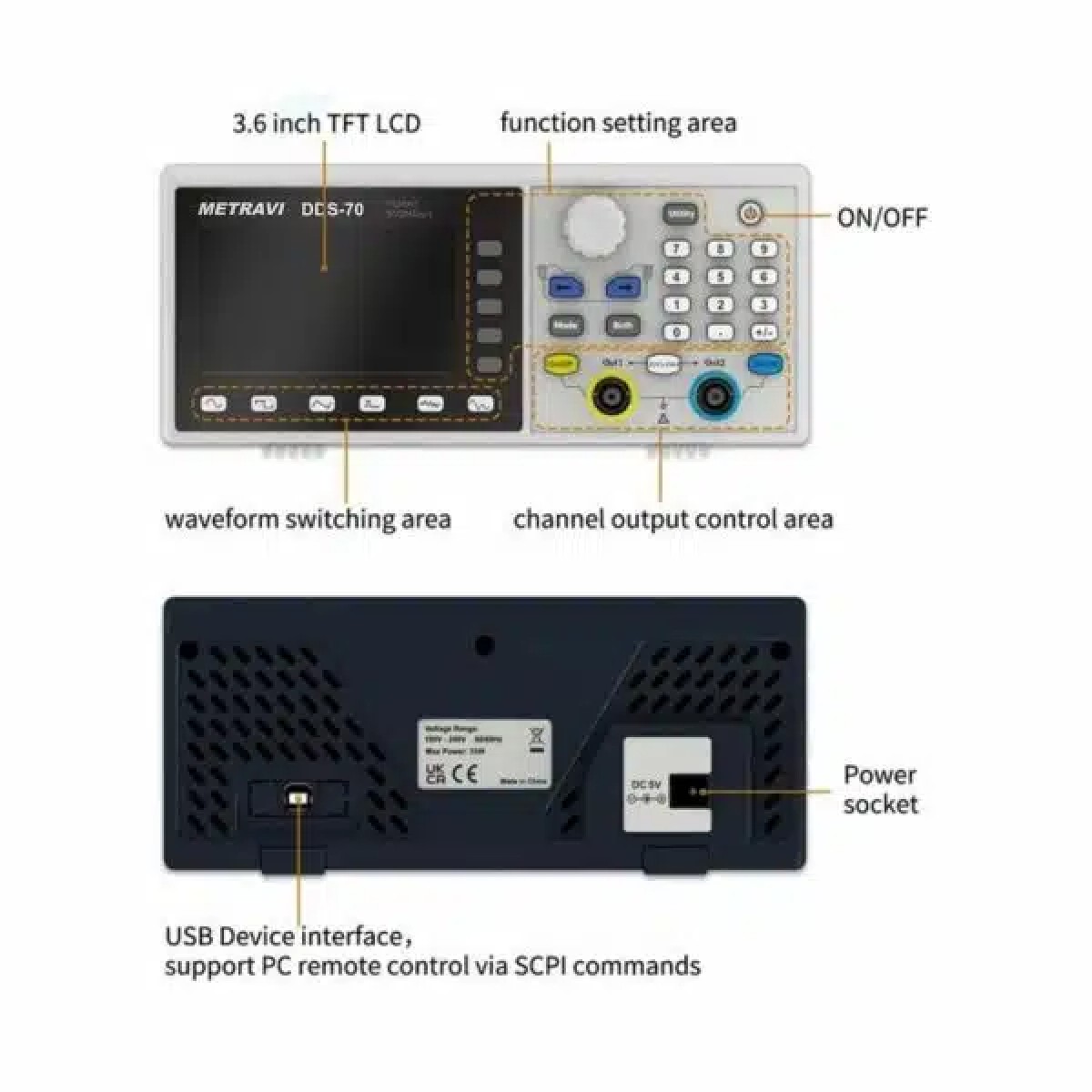

| Display | 3.6”480 x 272 pixels LCD |

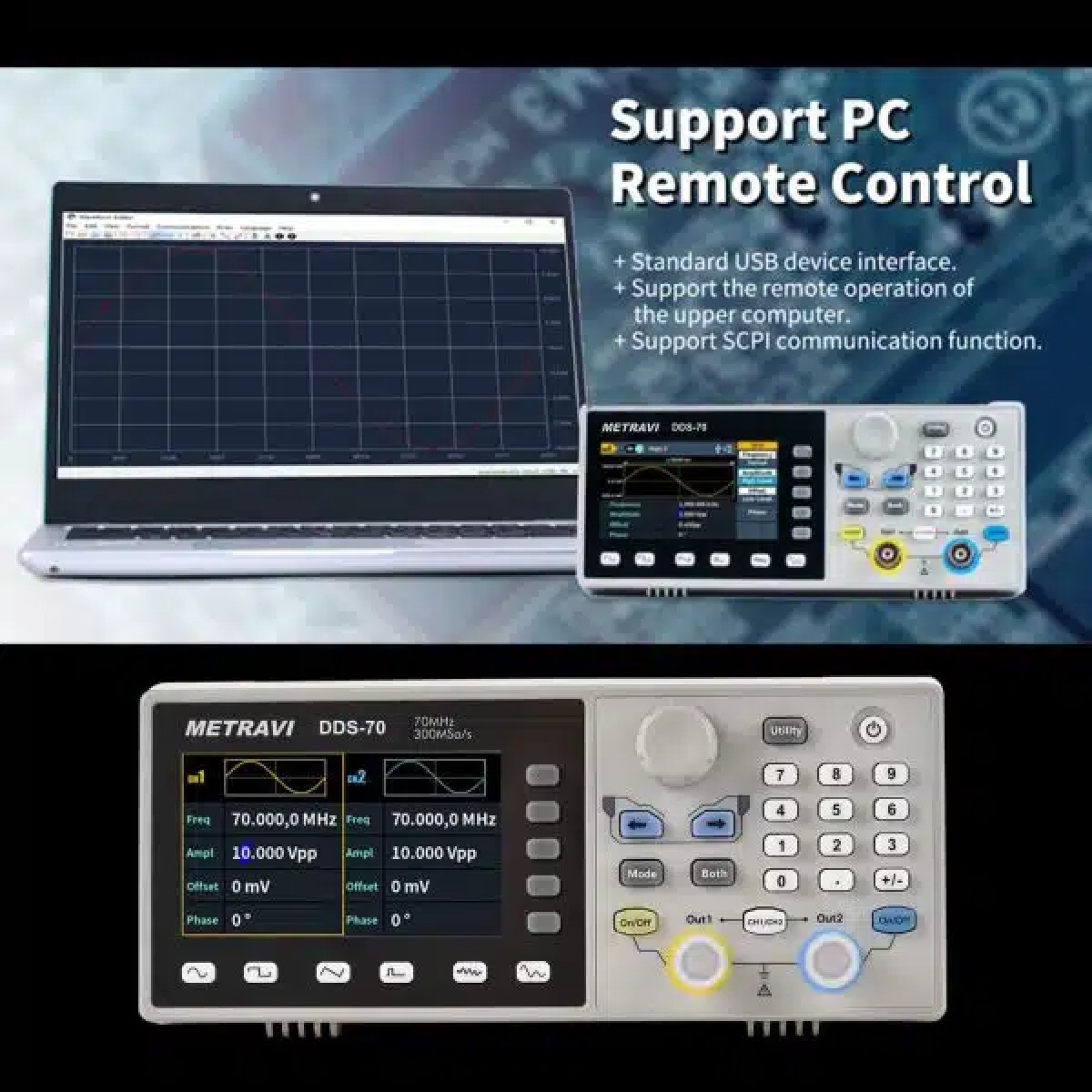

| Communication Interface | USB Device |
| Mechanical specifications | |
| Size | 200mm x 68.5mm x 75mm |
| Weight | 0.5kg |
