Metravi AVM-09 Thermo Anemometer with CFM CMM and built-in Manometer
Click To Zoom
Metravi AVM-09 Thermo Anemometer with CFM CMM and built-in Manometer
Metravi AVM-09 Thermo Anemometer with CFM CMM and built-in Manometer
The device measures Gauge/Differential Pressure, Air Velocity, Air Flow and temperature. Additional features include Data Hold. Auto Power Off and an USB for capturing reading to a PC using optional software
Request Callback
Order In Bulk
Generate Quote
₹ 26,730.00
(GST inclusive price) i₹26,730.00
( - 0% OFF )
Description

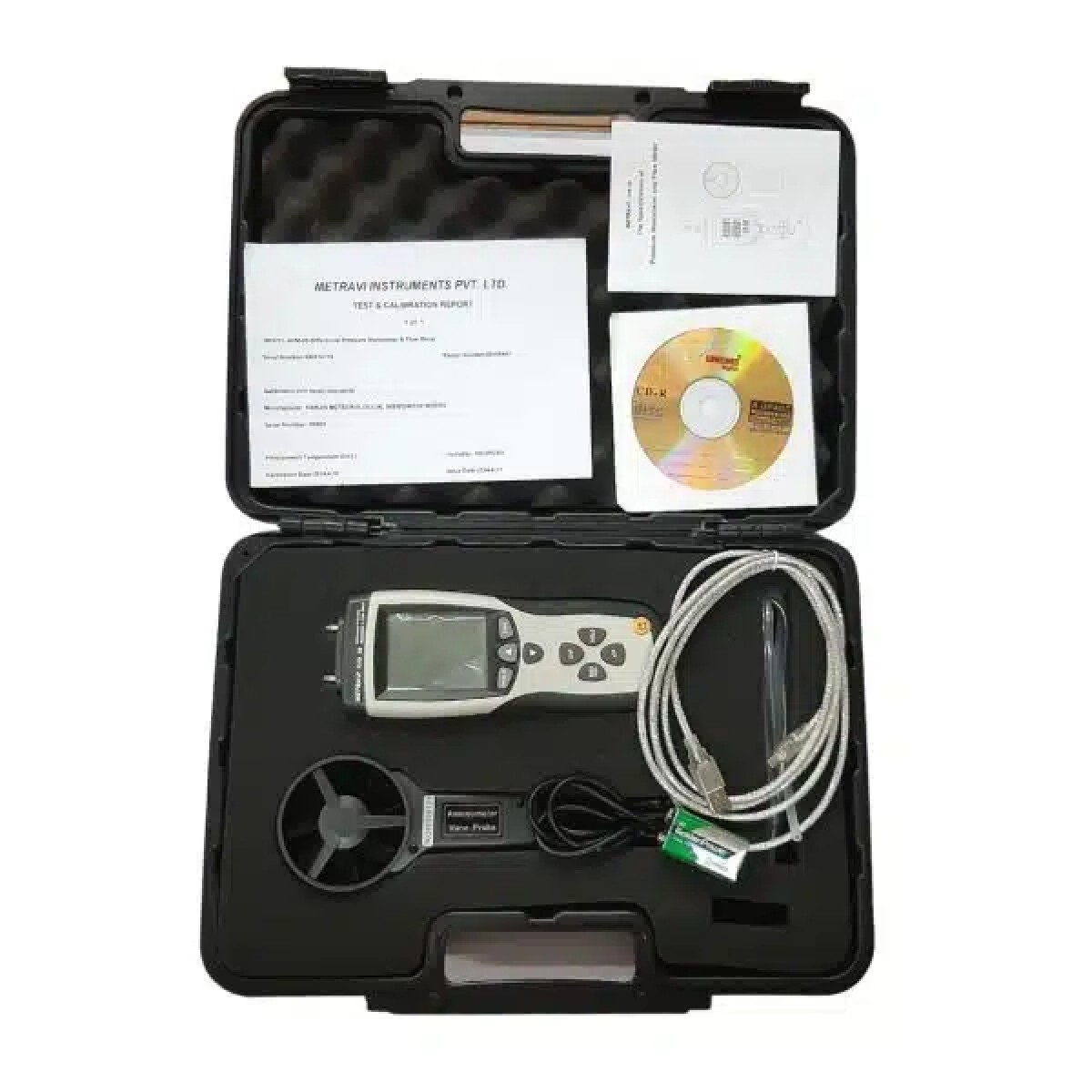

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Operating Conditions | 0 to 50 deg * C |
| Storage Conditions | -10 to 60 deg * C |
| Power Supply | 1 * 9V Battery |
| Low Battery Indicator | Yes |
| Dimensions | 203mm * 75mm * 50mm |

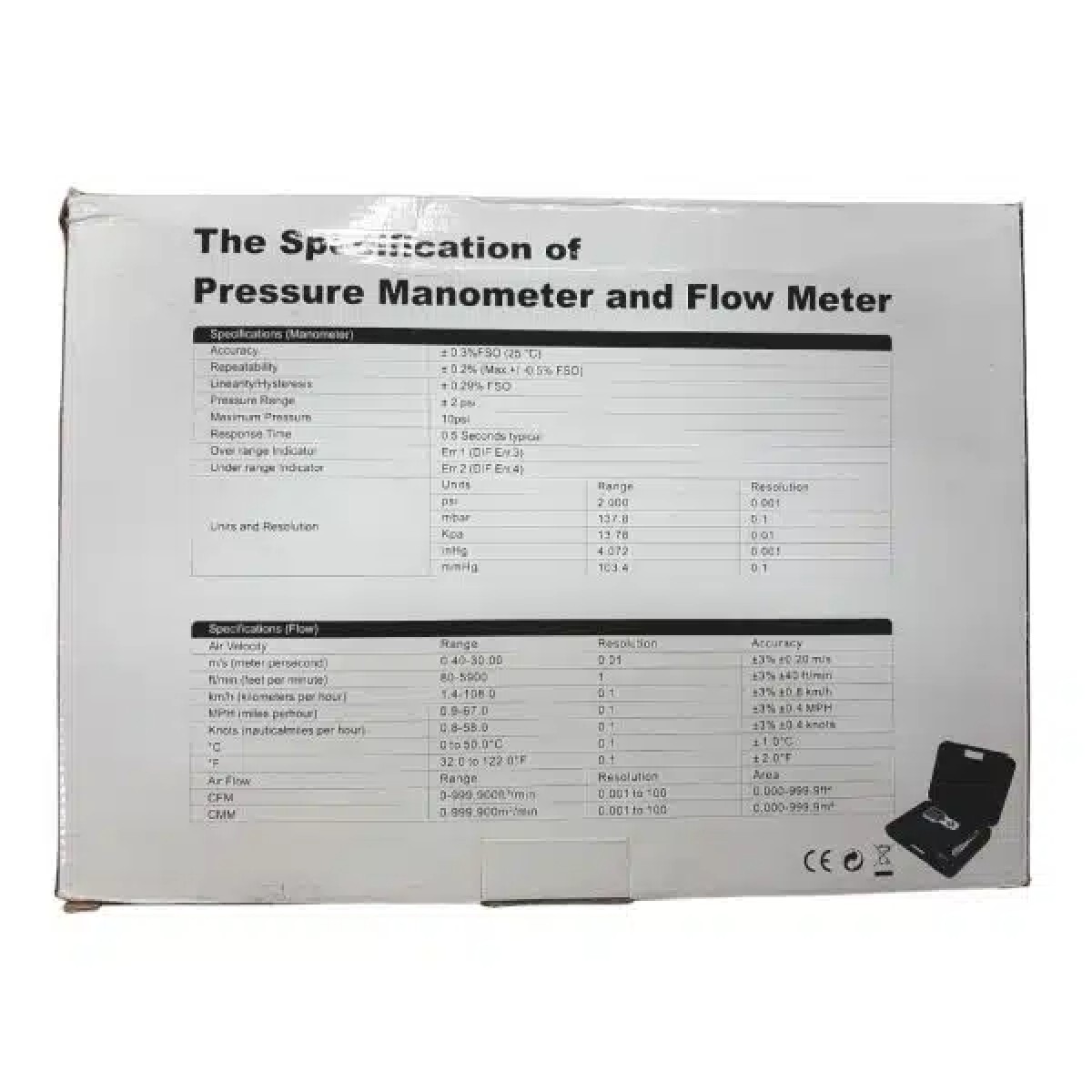

| Technical Specification | |||
| Manometer | |||
| Accuracy | (± 0.3)% FSO (25 deg * C) | ||
| Repeatability | (± 0.2)% ( Max +/-0.5\% FSO) | ||
| Linearity/Hysteresis | (± 0.29)% FSO | ||
| Pressure Range | ± 2 psi | ||
| Maximum Pressure | 10psi | ||
| Response Time | 0.5 Seconds typical | ||
| Over range Indicator | Err.1 (DIF Err.3) | ||
| Under range Indicator | Err.2 (DIF Err.4) | ||
| Units and Resolution | Units | Range | Resolution |
| Psi | 2.000 | 0.001 | |
| Mbar | 137.8 | 0.1 | |
| Kpa | 13.78 | 0.01 | |
| InHg | 4.072 | 0.001 | |
| mmHg | 103.4 | 0.1 | |
| Range of Air Velocity | |||
| Air Velocity | Range | Resolution | Accuracy |
| m/s (meter per second) | 0.40-30.00 | 0.01 | (± 3)% ± 0.2 * m / s |
| ft/min (feet per minute) | 80-5900 | 1 | (± 3)% ± 40 * ft / m * in |
| km/h (kilometers per hour) | 14-108.0 | 0.1 | (± 3)% ± 0.8 * km / h |
| MPH (miles per hour) | 0.9-67.0 | 0.1 | (± 3)% ± 0.4 * MPH |
| Knots (nautical miles per hour) | 0.8-58.0 | 0.1 | ±3% ± 0.4 knots |
| Range of Temperature | |||
| Range | Resolution | Accuracy | |
| ° C | 0 to 50 deg * C | 0.1 | ± 1 deg * C |
| ° F | 32 to 122 deg * F | 0.1 | ±2 deg * F |
| Rang of Air Flow | |||
| Air Flow | Range | Resolution | Area |
| CFM | 0 - 999, 900f * t ^ 3 / m * in | 0.001 to 100 | 0.000-999.9 |
| CMM | 0-999, 900m ^ 3 / m * in | 0.001 to 100 | 0.000-999.9 |
