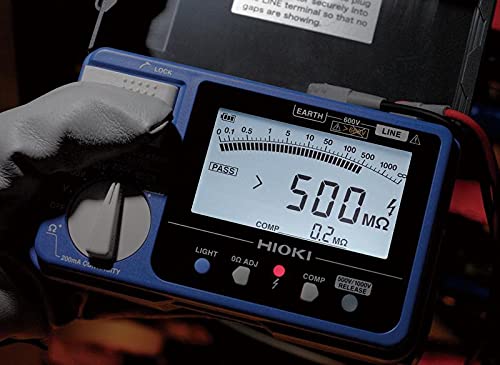

HIOKI IR4056-20 DIT INSULATION TESTER
Click To Zoom
HIOKI IR4056-20 DIT INSULATION TESTER
HIOKI IR4056-20 DIT INSULATION TESTER
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4056 is a 5-range, 50V to 1000V digital insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 20,467.00
(GST inclusive price) i₹20,467.00
( - 0% OFF )
Description
What's in the Box
|
Rating & Reviews
Rating
Product Specifications
| SPECIFICATIONS | |
| Rated output voltage | 50 V DC, 125 V DC, 250 V DC, 500 V DC, 1000 V DC |
| Effective maximum indicated value | 100 MΩ, 250 MΩ, 500 MΩ, 2000 MΩ, 4000 MΩ |
| Accuracy 1st effective measuring range MΩ | ±2 % rdg. ±2 dgt. 0.200 - 10.00, ±2 % rdg. ±2 dgt. 0.200 - 25.0, ±2 % rdg. ±2 dgt. 0.200 - 50.0, ±2 % rdg. ±2 dgt.0.200 - 500, ±2 % rdg. ±2 dgt.0.200 - 1000 |
| Lower limit resistance | 0.05 MΩ, 0.125 MΩ, 0.25 MΩ, 0.5 MΩ, 1 MΩ |
| Overload protection | 600 V AC (10s), 660 V AC (10s) |
| DC voltage range | 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3 % rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
| AC voltage range | 420 V (0.1 V resolution) | 600 V (1 V resolution), 2 ranges, 50|60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
| Low resistance range | For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) |
| Display | Semi-transmissive FSTN LCD with back lighting, bar-graph indicator |
| Response time | Approx. 0.8 second for PASS|FAIL decision (based on in-house testing) |
| Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 600 g (21.2 oz) (including batteries, excluding test leads) |
| Other functions | Live circuit indicator, Automatic electric discharge, Automatic DC|AC detection, Comparator, Drop proof, Auto power save |
| Power supply | LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (Comparator off, backlight off, 500 V range, no load) Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
