Metravi PRO CFL-01A Cable Fault Locator
Metravi PRO CFL-01A Cable Fault Locator

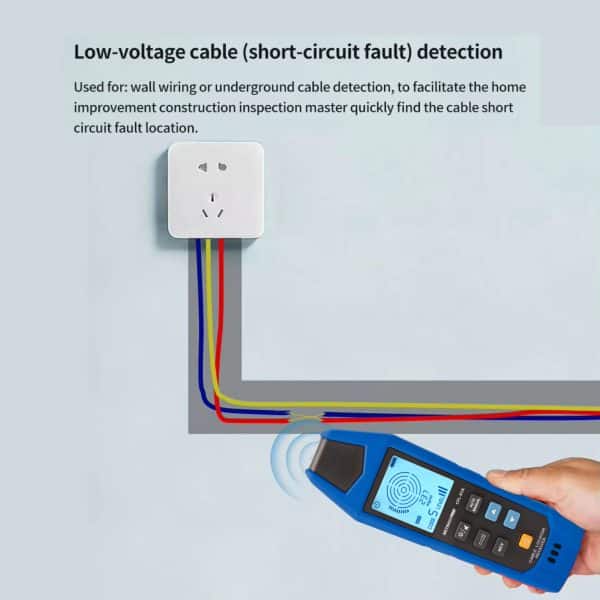

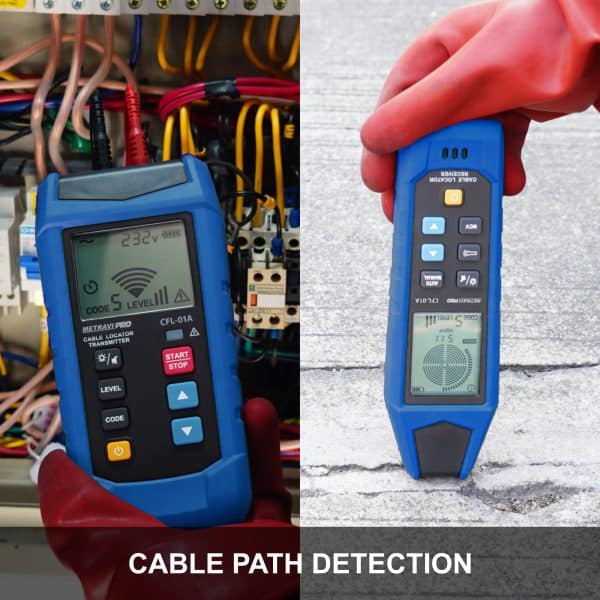

The Metravi PRO CFL-01A Cable Fault Locator is a reliable transmitter–receiver system designed to trace, test, and diagnose low-voltage cables with precision. Offering accurate detection of paths, shorts, opens, and live wires, it’s ideal for residential, commercial, and industrial projects.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 16,048.00
(GST inclusive price) i₹21,600.00
( - 26% OFF )
Description
What's in the box?Metravi PRO CFL-01A Cable Fault Locator
|
Rating & Reviews
Rating
Product Specifications
| TECHNICAL SPECIFICATIONS | |
| TRANSMITTER | |
| Working Frequency | 33kHz |
| Identification Range (External Voltage) | 8~480V |
| Identification Frequency (External Voltage) | DC/AC: 50-60Hz |
| Accuracy (External Voltage) | ±2.5%±3deg |
| Strength of external overvoltage | 480V DC/AC |
| Display | Segmented LCD (TN translucent) |
| Backlight | Supported (white) |
| Button Life | 10000 times |
| CODE (Code value) | 0, 1, 2, 3, 4, 5, 6 and 7. Default code: 5 |
| Level of Signal Strength | 1, 2 and 3. Default level: 3 |
| Single Pole Testing | Supported (Support testing in energised condition; Maximum 480V) |
| Dual Pole Testing | Supported (Support testing in energised condition; Maximum 480V) |
| ELV Indicator Light | 1) Without batteries: If external voltage applied is >25V, the ELV LED emits weak light and its brightness increases as voltage rises (light up constantly), otherwise, the ELV LED emits weak light "or lights off. 2) Transmitter is in power-on state with batteries installed: the ELV LED lights off 3. Transmitter is in power-off state with batteries installed: If external voltage applied is >25V, the ELV LED emits weak light and its brightness increases as voltage rises (light up constantly), otherwise, the ELV LED emits weak light or lights off." |
| Overvoltage Rating | CAT III 480V |
| Pollution Degree | 2 |
| Drop Proof Protection | 1 m |
| Certifications | CE Certified EMC: EN IEC 61326-1 LVD: EN 61010-1 EN IEC 61010-2-033 RoHS |
| Battery | 6 × 1.5V AA (LR06) |
| Power Consumption | 165mA (including backlight, output short circuit, III, CODE5) |
| Fuse | F0.6A 600V |
| Operating Environment | 0 ~ 40°C; Max. 80%RH (Non-condensing) |
| Storage Environment | -20 ~ 60°C; Max. 80%RH (Non-condensing) |
| Operating Altitude | ≤2000m |
| Dimensions | 189*96*48mm |
| Weight (excluding batteries) | About 389g |
| Weight (including batteries) | About 528g |
