Metravi 5050E Analogue Multimeter
Click To Zoom
Metravi 5050E Analogue Multimeter
Metravi 5050E Analogue Multimeter
Measures AC/DC Voltage up to 1000V, T-RMS AC/DC Current up to 10A, Resistance up to 2000MΩ, Frequency up to 25kHz, Transistor Testing, Diode Testing, Audible Continuity testing and Overload Protection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 3,761.00
(GST inclusive price) i₹5,063.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Over-voltage category | CAT II 1,000V, CAT III 500V to ground potential. |
| Standard Environment | 23°C±3°C, less than 75% RH. |
| Temperature Ranges | 0°C to 40°C, 32°F to 104°F for Operating condition. -10°C to 50°C, 14°F to 122°F for Storage condition. |
| Humidity Scope | Operating condition less than 90% RH. Storage condition: less than 80% RH. |
| Operating altitude | Max. 2,000 m |
| Size | 158(W)x 105(D)x 40(H) MM including Holster |
| Weight | 490g approx. (including batteries & Holster) |
| Technical Specification | |||
| Functions | Range | Accuracy | Remarks |
| DC V | 0-0,05-0,5-2,5-10-50-250V | ±4% of FSD, at 0.05V range | IlInput Impendence: 20ΚΩ/V Overload Protection: Max. 1000V AC/DC BUT Range 0.1V/0.5V: Max. 250V |
| -1000V | ±3% of FSD, at other ranges | ||
| AC V (True RMS value) | 0-0.1-0.5-2.5-10-50-250V-1000V | ±4% of FSD. Band width: 40~400 Hz NOTE #1 | Input Impendence: 10ΜΩ Overload Protection: Max. 1000Vrms AC/DC, BUT Range 0,05V: Max, 250V |
| DC A | 0-0,01-0,05-0,25-2,5-25mA -250mA-10A | ± 3% of FSD, ±4% of FSD. For 10A range | Drop Voltage: 50 mV Overload protected by two Fuses 0.5A/1000V(for mA ranges) and 10A/1000V. |
| AC A (True RMS value) | 0-0.01-0.05-0.25-2.5-25mA -250mA-10A | ± 4% of FSD. Band width: 40-1,000 Hz | Drop Voltage: 50 mV Overload protected by two Fuses 0.5A/1000V (for mA ranges) |
| Ω | Χ 1:0.2 - 2ΚΩ Midscale at 200 Χ. 10:2-20ΚΩ Midscale at 2002 X 100:20~200KΩ Midscale at 20000 ΧΙΚ: 200-2ΜΩ Midscale at 20ΚΩ X10K: 2K-20ΜΩ Midscale at 200ΚΩ X100K: 20K~200M ohm, Midscale at 2000K ohm X1M: 200K-2000M ohm, Midscale at 20M ohm | NOTE #1 & #2 ± of ARC (Scale Length) | 10A/1000V. Overload protected by the Oxide Varactor & Fuse. The Input Voltage limit: Min.50V, Max. 250Vrms AC/DC, |
| Frequency | 0,25-2,5K-25K Hz | ±3% of FSD. | Input Voltage Scope: 2.5V~250V, But Max, 10V at 2.5/25k Hz ranges |
| Transistor Check | hFE: 0-1000 | Not Specified | At Ω Χ 10 Range |
| Diode Check | IF, IR, LI, LV | Not Specified Note#3 | At Ω Χ 10 Range |
| Continuity Check | Beeper sounding | < 200 Ohm | Overload protected by Oxide Varactor. Input Voltage Limit: Min. 50V, Max.250V AC/DC(5s). |
| POWER Supply | Internal Battery: R6P, AA, 1.5V 2pcs, 6F22, NEDA1604, 9V 1pc | ||
Rating & Reviews
Rating
Similar Products
More From Brands
Request Callback
We will get in touch with you
Enter your requirement details!
We will get in touch with you.
Get ready to measure up with Insuzo where honesty meets precision in a playground of testing and measuring fun! Dive into our collection of trusted instruments and brands, because when it comes to accuracy, we're serious about making it a blast!
The Office Address
305 P.P. Trade Center, Netaji Subash Place, Pitampura, Delhi - 110034
For Support
8920884830
Send Us Email
info@insuzo.com
.png)
.png)
.png)
.v3.jpg "Metravi 250TR Analogue Multimeter")
.jpeg "KYORITSU 1109S ANALOG MULTIMETER"){kind=tracking}

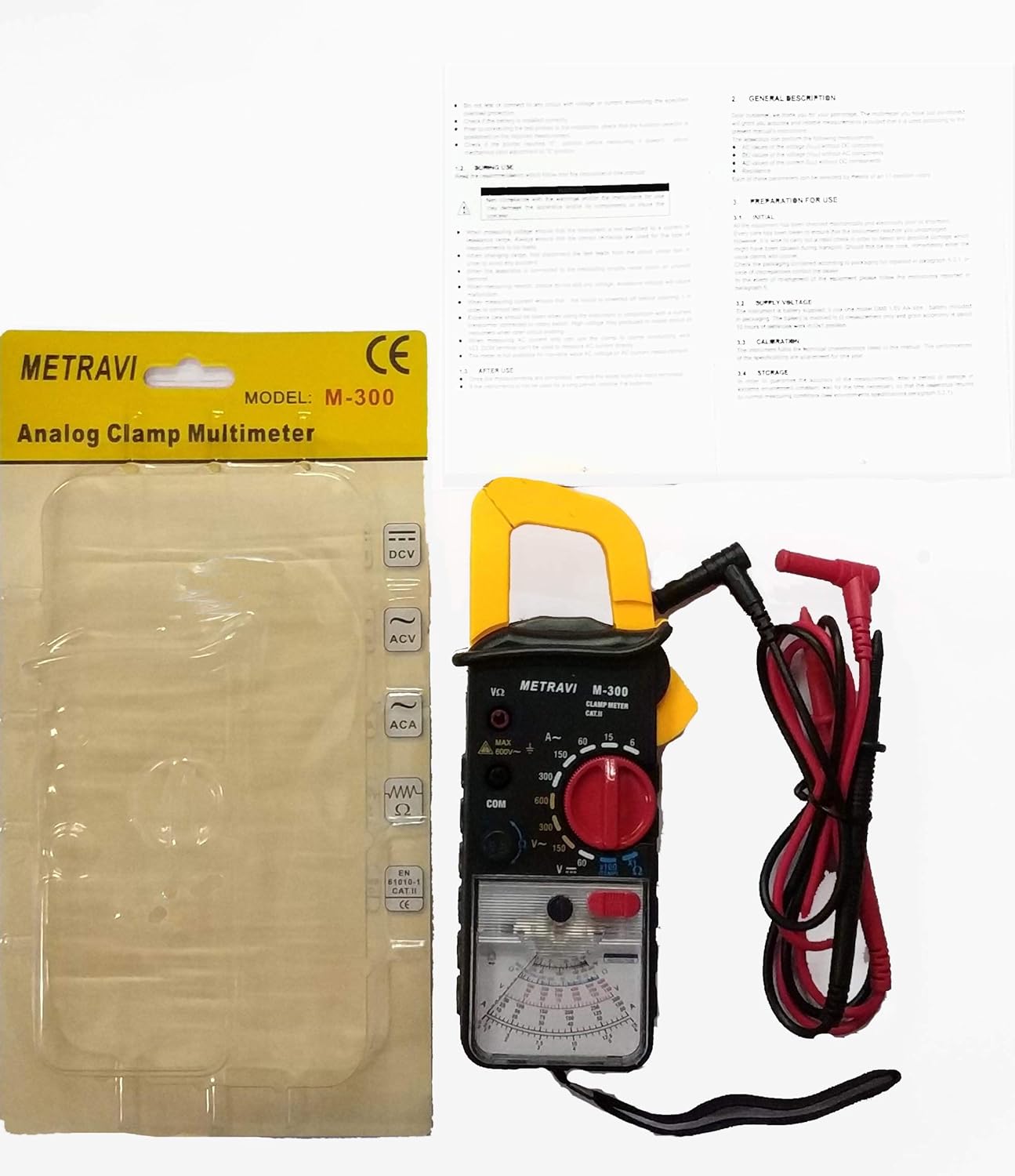

.jpeg "Metravi M-300 Analogue Clamp Meter"){kind=tracking}
