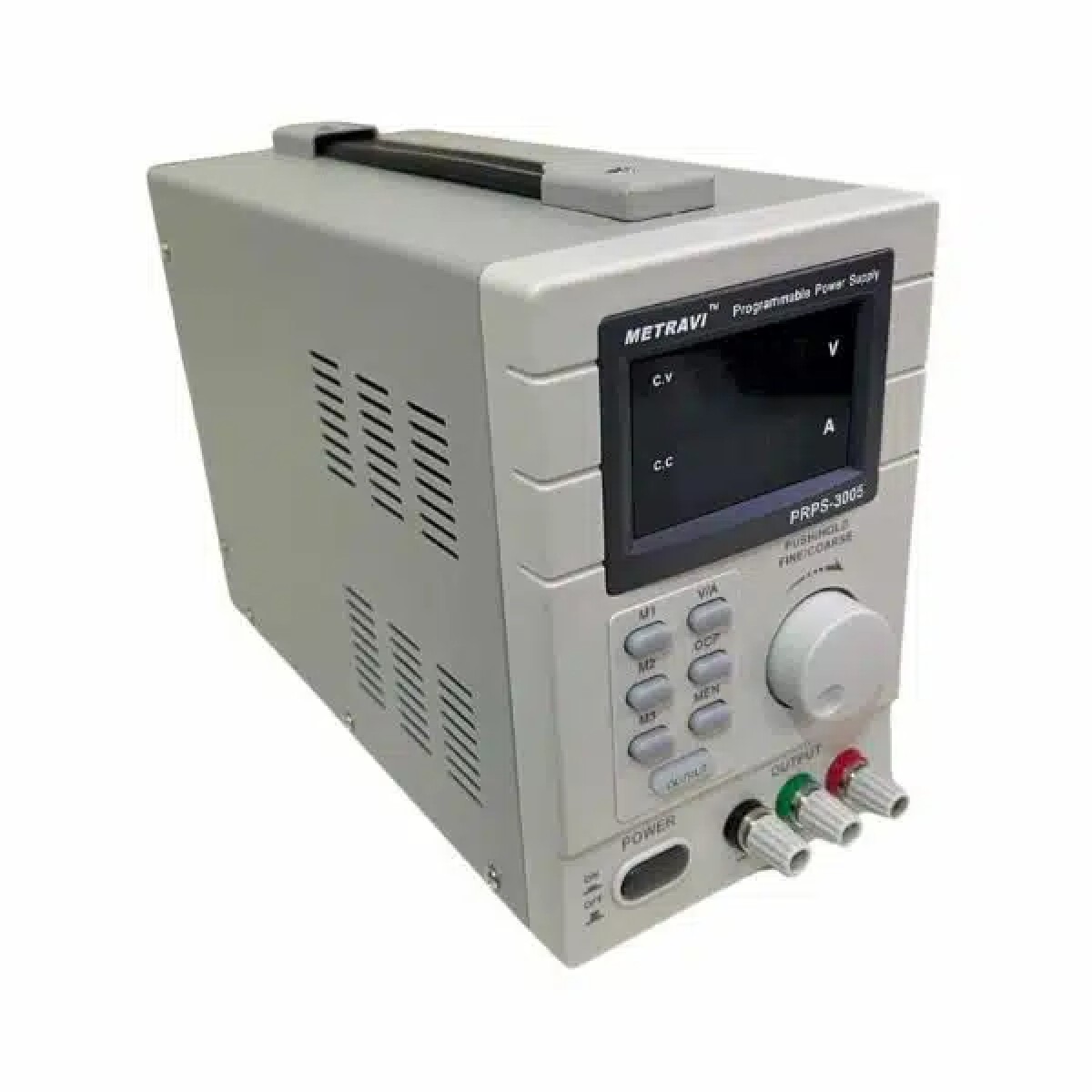

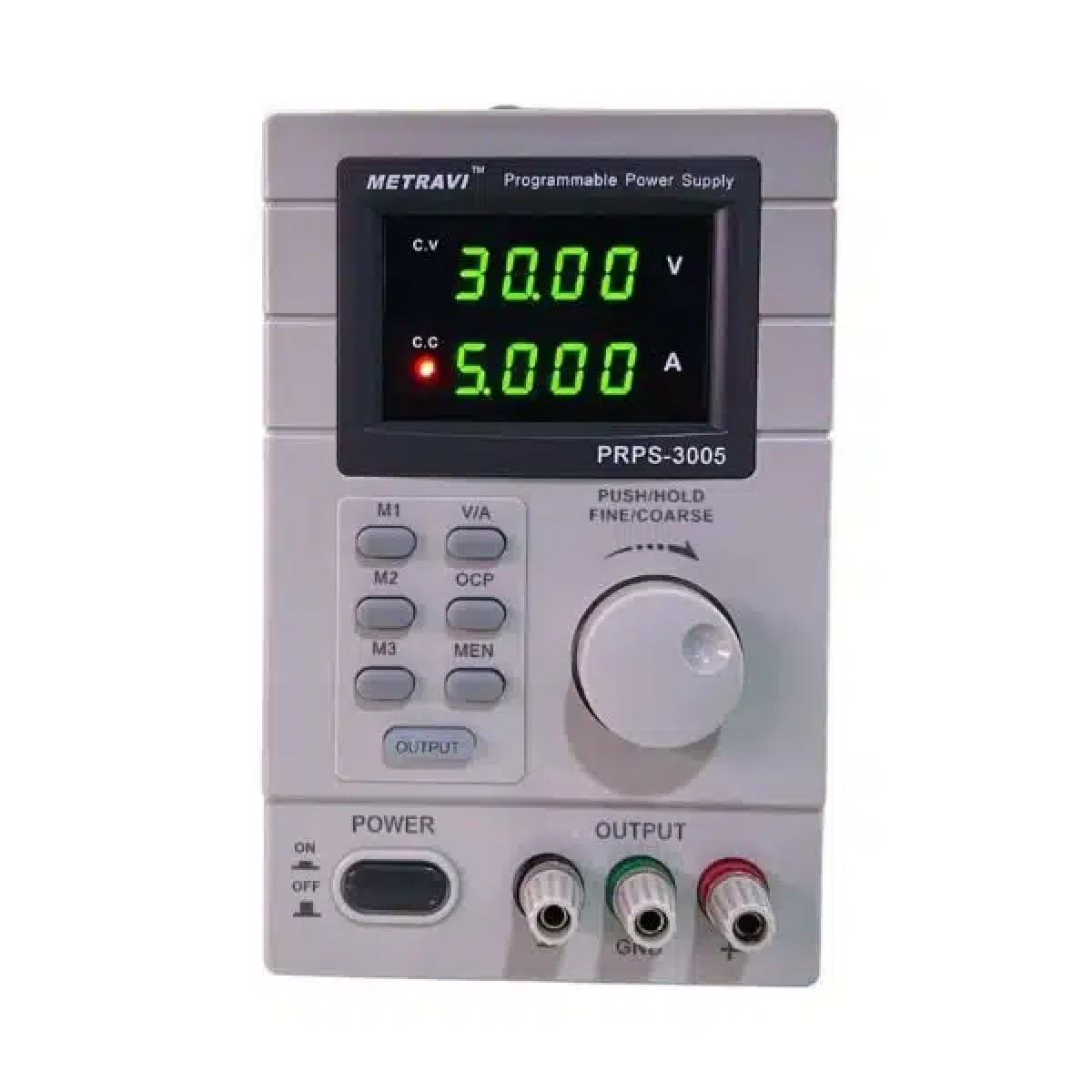

Metravi PRPS-3005-3 Programmable DC Regulated Power Supply
Click To Zoom
Metravi PRPS-3005-3 Programmable DC Regulated Power Supply
Metravi PRPS-3005-3 Programmable DC Regulated Power Supply
The PRPS-3005-3 is a high-precision, variable DC power supply. It can operate on either Constant Voltage (C.V.) or Constant Current (C.C.) mode
Request Callback
Order In Bulk
Generate Quote
₹ 43,909.00
(GST inclusive price) i₹43,909.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Voltage and Current dual LED display | |
| Voltage and Current Coarse/Fine adjustment | |
| Protection mode | limited current output |
| Parallel or serial connection detection to automatically switch outputs | |
| Stylish plexi-glass display panel | |
| Memory | 3 programmable memories |
| PC connection | Remote control on a computer via USB connection |
| Supports Windows XP, Vista, W7, W8, W81(32 bit, 64 bit) systems | |
| Technical Specification | |
| Model Number | PRPS-3005-3 |
| Output Voltage | 230 V/ 50 Hz |
| Fuse | T4A/250 V |
| Output Voltage | 0-30 V |
| Output Current | 0-5A |
| Power effect | C.V.<= 0.01% + 3mV |
| C.C.<= 0.1% + 3mA | |
| Load Effect | 2.V.<= 0.01% + 5mV |
| C.C.<= 0.1% + 10mA | |
| Resolution | 10 mV |
| 1 mA | |
| Accuracy (25 deg * C plus/minus 5 deg * C) | <= 0.1% + 20mV |
| <= 0.1% + 5mA | |
| Ripple & Noise (20Hz-20MHz) | <= 1mVrms |
| <= 3mAms | |
| Temperature Coefficient | ≤ 150 ppm |
| ≤ 150 ppm | |
| Readout Resolution | 10 mV |
| 1 mA | |
| Readout Temperature Coefficient | <= 100mms |
| <= 100mms | |
| Parallel Load Regulation | <= 0.1% + 0.1V |
| Serial Load Regulation | <= 0.1% + 0.1V |
| Dimensions | 220(W) * 145(H) * 310(D) * mm |
| Weight | 7Kg |
| Fixed Output | 5V/3A |
