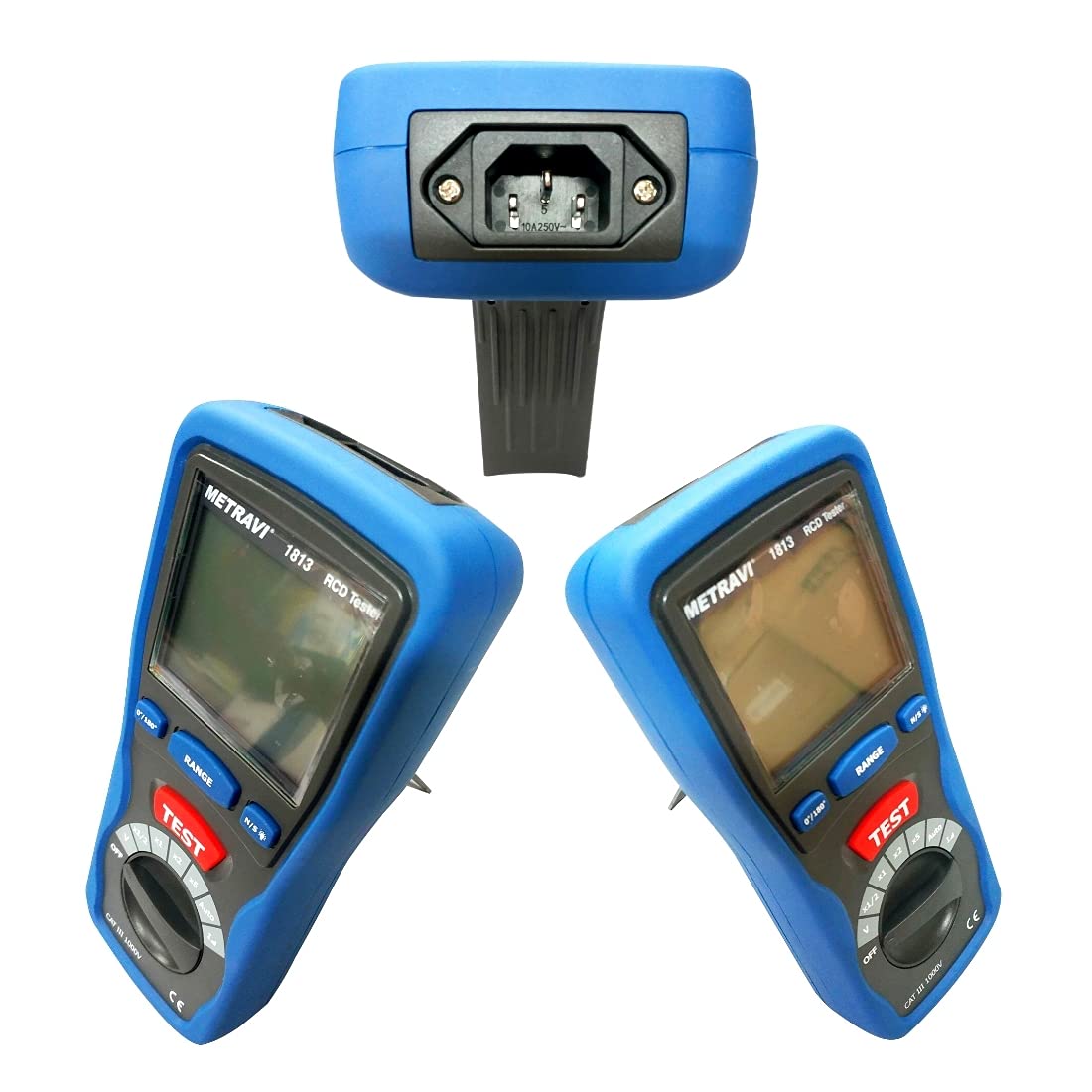

Metravi 1813 ELCB RCD Tester

Click To Zoom

Metravi 1813 ELCB RCD Tester

Metravi 1813 ELCB RCD Tester

(Based On 10 Reviews)

The Metravi 1813 is a ELCB/RCCB Tester. The main function of the tester is to test and measure the trip values of ELCB/RCCB in trip time (expressed in ms) or -in trip current value (expressed in mA).

Request Callback

Order In Bulk

Generate Quote

₹ 16,470.00

(GST inclusive price) i
  • Base Value: ₹ 13957.6
  • GST: (18) % ₹ 2512.4
  • Total Value ₹ 16470

₹16,470.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Digit measurement display.
  • N or S (delayed) type RDD test, – AC or A (continuous component detection).
  • Operates on TT neutral and TN system.
  • Operating voltage : 230V (Ph/N) – 10/+6% 50/60 Hz.
  • CAT III 600V. Double insulation.
  • IEC 61010-1. IEC 61557-6 NF. EN 61557-6. IEC 61236 (EMC).
  • Locking and warning signals for 400V network voltage and contact potential >50V.
  • Test and measure the trip values of RDDS (Residual Differential Devices): -in trip time (expressed in ms ) or -in trip current value (expressed in mA)

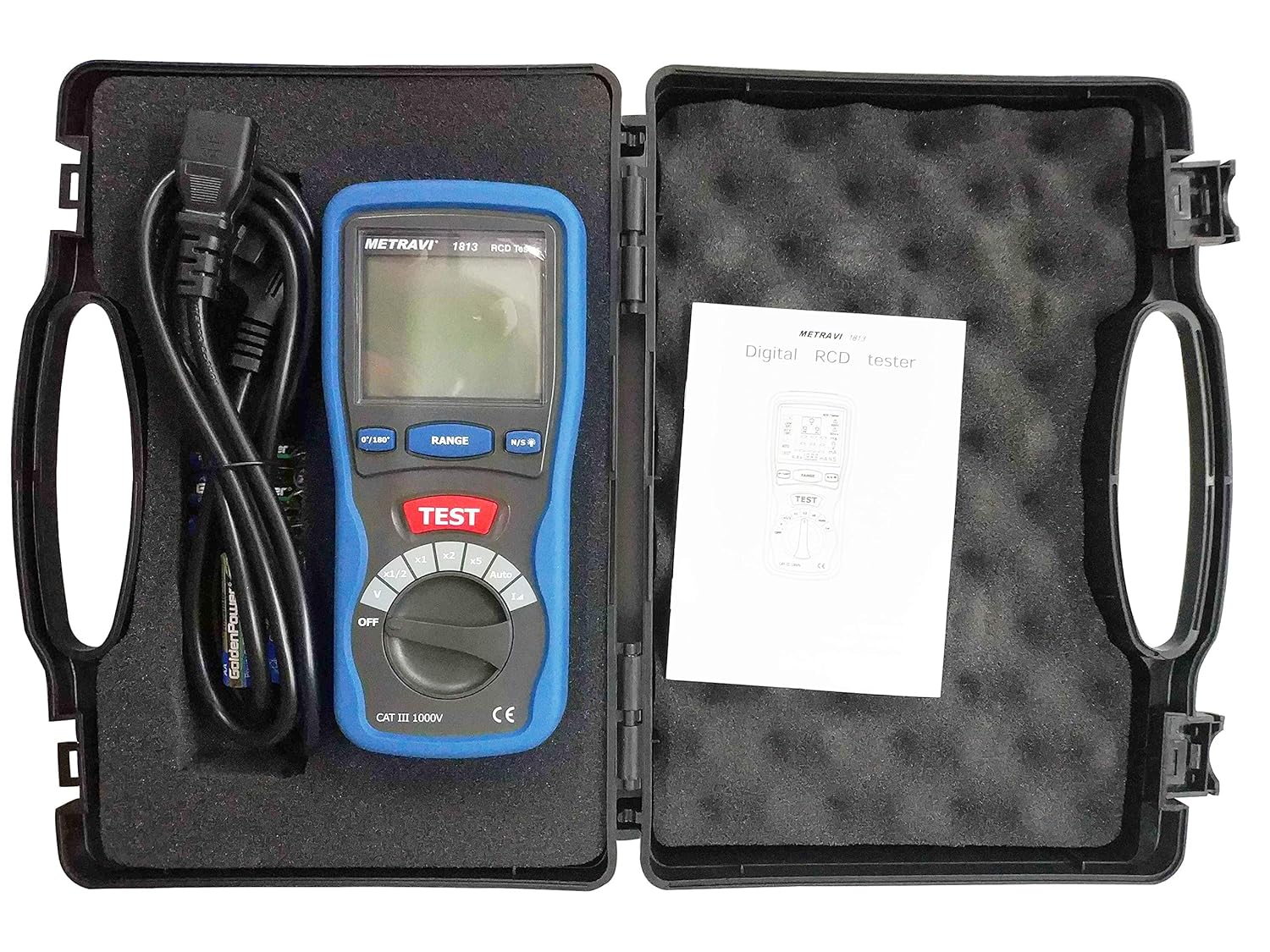

What's in the box?

  • ELCB RCD Tester



Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specification
Measurement
specifications		RangesResolution Accuracy
Nominal test current10/30/100/500mA/1A (-2%+10%) + 6Digits
Current selection 0.5x, 1x, 2x, 5x nominal current
Trip time10-2000 ms at 0.5x 1ms±(2%rdg.+2Digits)
10-500 ms at 1x
10-150 ms at 2x
10-40 ms at 5x
Ramp test0.4x to 1.4 times nominal rated current 10%
Mains voltage230 (+10%/-10%) V1v±(2%rdg.+2Digits)
