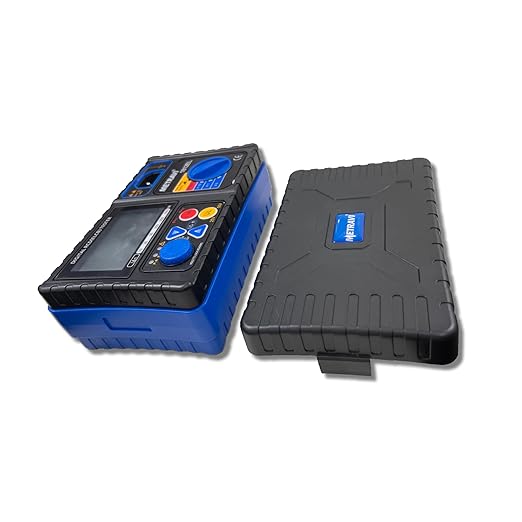

Metravi 1812 EL ELCB / RCD Tester
Click To Zoom
Metravi 1812 EL ELCB / RCD Tester
Metravi 1812 EL ELCB / RCD Tester
Metravi 1812EL ELCB Tester in a new avatar with Current Rating up to 500mA, Trip Test, Fault Trip Time, DC Test, Auto Ramp Test, Self Powered, verifies wiring connection, 1000mS readout for testing latest ELCBs.
Request Callback
Order In Bulk
Generate Quote
₹ 14,175.00
(GST inclusive price) i₹14,175.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 3 1/2 digits, Backlit LCD |
| Operating Voltage | 230V 50Hz +10% - 15% |
| Grounding Resistance | Maximum 50Ω |
| Trip Time | 0.6% ±4dgts |
| LED Indication | P-E / P-N LED Green light means correct wiring, Red light means incorrect wiring |
| Operating Environment | 0 〜 40°C ; ≤ 80%RH |
| Storage Environment | -20 〜 60°C ; ≤ 70%RH |
| Allowable Altitude | ≤ 2000 mts |
| Protection & Certifications | IEC/EN 61010-1, CATIII 300V, IEC/EN 61557-1, IEC/EN 61557-6 |
| Dimensions & Weight | 165 x 140 x 80 mm ; 575 gms |
| Technical Specification | ||||
| FUNCTION | TRIP TIME | TRIP CURRENT SETTINGS | ACCURACY OF TRIP CURRENT (mA) | ACCURACY OF TRIP TIME (mS) |
| X 1/2 | 1000ms | 10/20/30/200/300/500mA | -10% 〜 0 | 0.6% ±4 dgts |
| X 10 | 1000ms | 0 〜 10% | ||
| X 5 | 200ms | |||
| Auto Ramp | Goes up by 10% from 20% to 110% of I n 300msx 10 | -10 ～ 10% | ||
| DC Test | 1000ms | (10/20/30/200/300/500mA) + 500mA | -10 〜 10% | |
